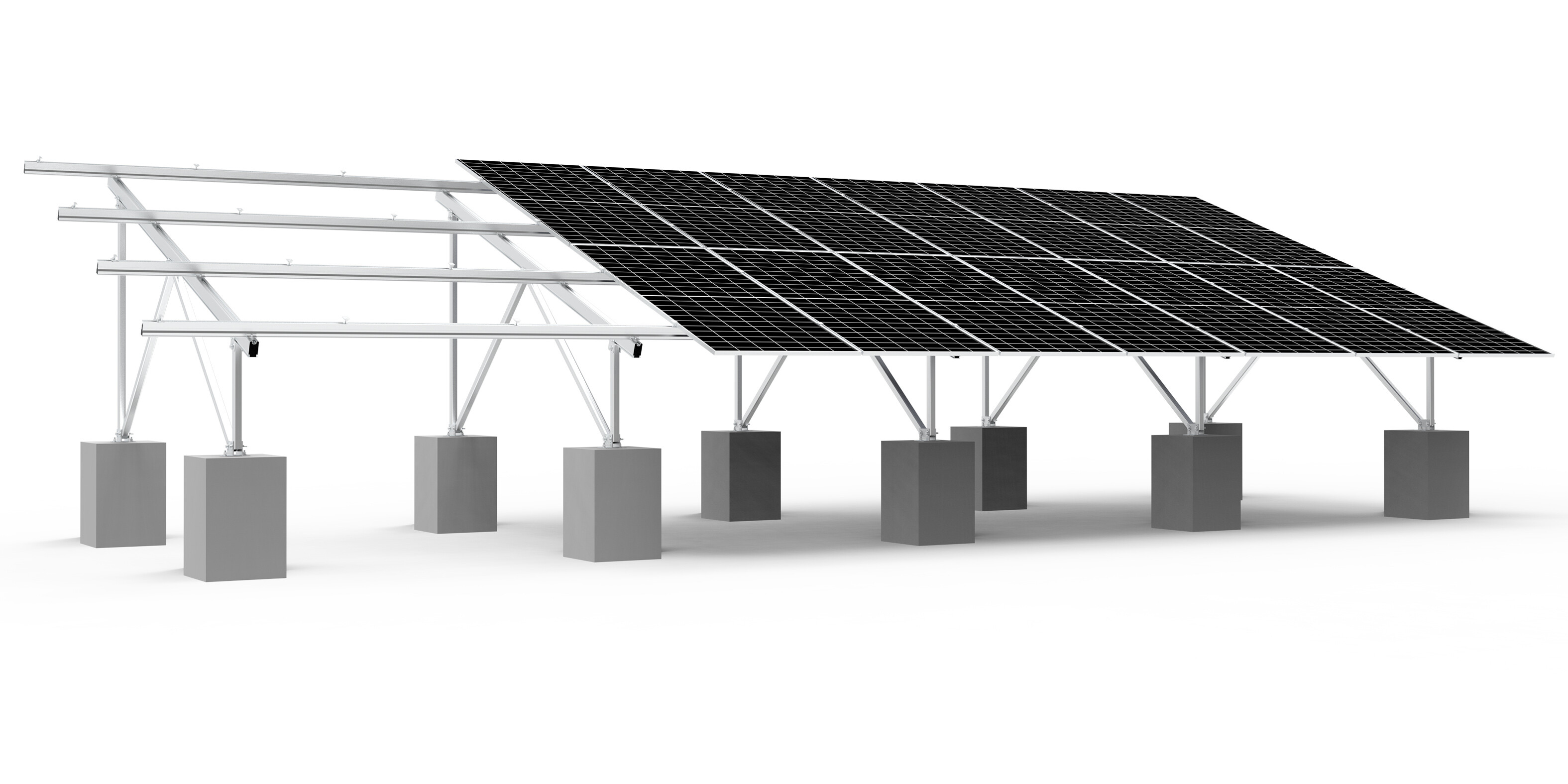

TonKor Aluminum Dual Pile Concrete Foundation Mount
Dual-post aluminum ground mount on concrete footings. Stable, corrosion-resistant, and highly adjustable where ramming or ground screws aren’t feasible.
Inquiry Now
Send Email

Product Introduction

地面 铝合金 螺旋地桩双立柱竖排2×10光伏支架 - 副本

Product Introduction

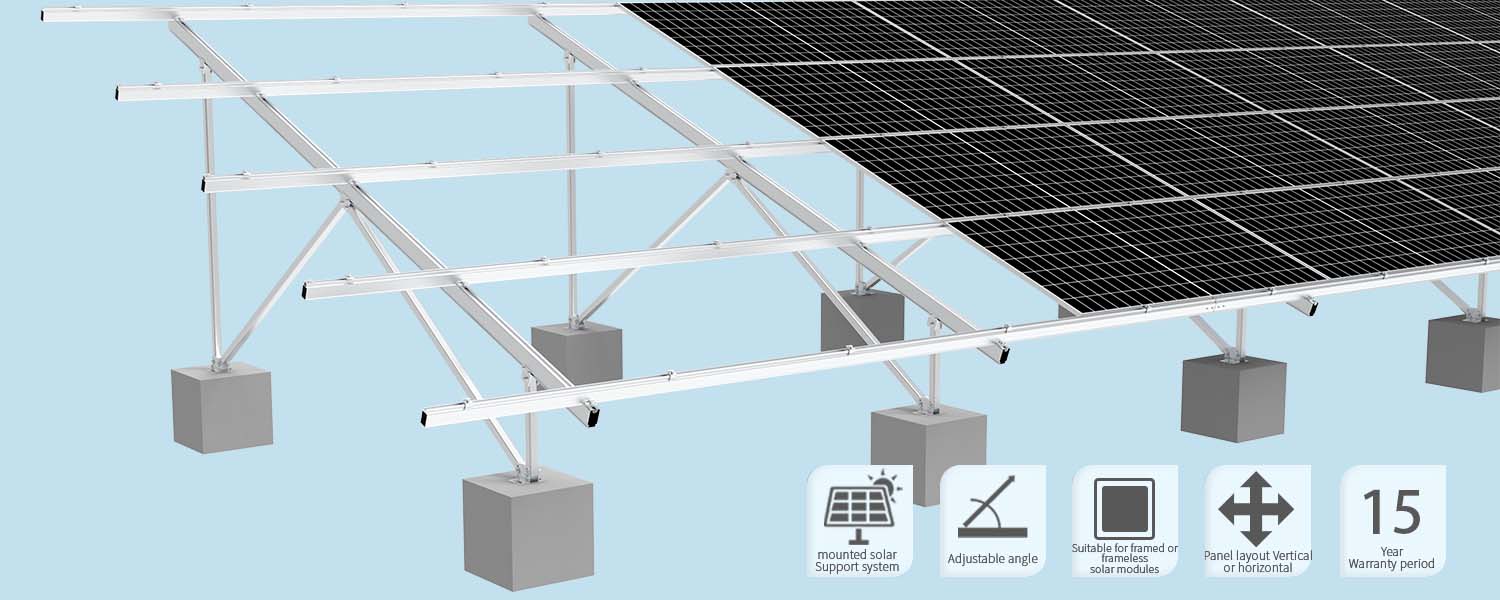

    The TonKor Aluminum Dual Pile Concrete Foundation Mount pairs a robust twin-post frame with cast-in or anchor-bolted concrete footings to deliver dependable bearing capacity on sites where driven piles or ground screws are restricted. Anodized aluminum rails and cross-members ensure long-term corrosion resistance, while base plates and slotted brackets provide generous on-site adjustability for clean array alignment over uneven terrain. The system supports framed or frameless modules in portrait or landscape and integrates smoothly with mainstream electrical designs and BOS planning.

地面 铝合金 螺旋地桩双立柱竖排2×10光伏支架 - 副本

Key Advantages

◆Predictable foundation capacity

   Concrete footings provide reliable load performance for soft fills, high frost lines, or code-mandated foundations.

◆Durable aluminum superstructure

   Anodized members resist corrosion and reduce maintenance across a wide range of climates.

◆High site adjustability

   Slotted base plates and multi-axis brackets allow precise east-west and north-south tuning after footing set-out.

◆Pre-assembled kit logic

   Project-specific kits arrive labeled and partially pre-assembled to shorten install time and reduce rework.

◆Flexible layout

   Compatible with framed/frameless modules, portrait or landscape strings, enabling optimized DC design.

lv3

Application Scope

◆Use cases: sites with piling restrictions, rocky cuts, backfilled areas, or jurisdictions requiring concrete footings.

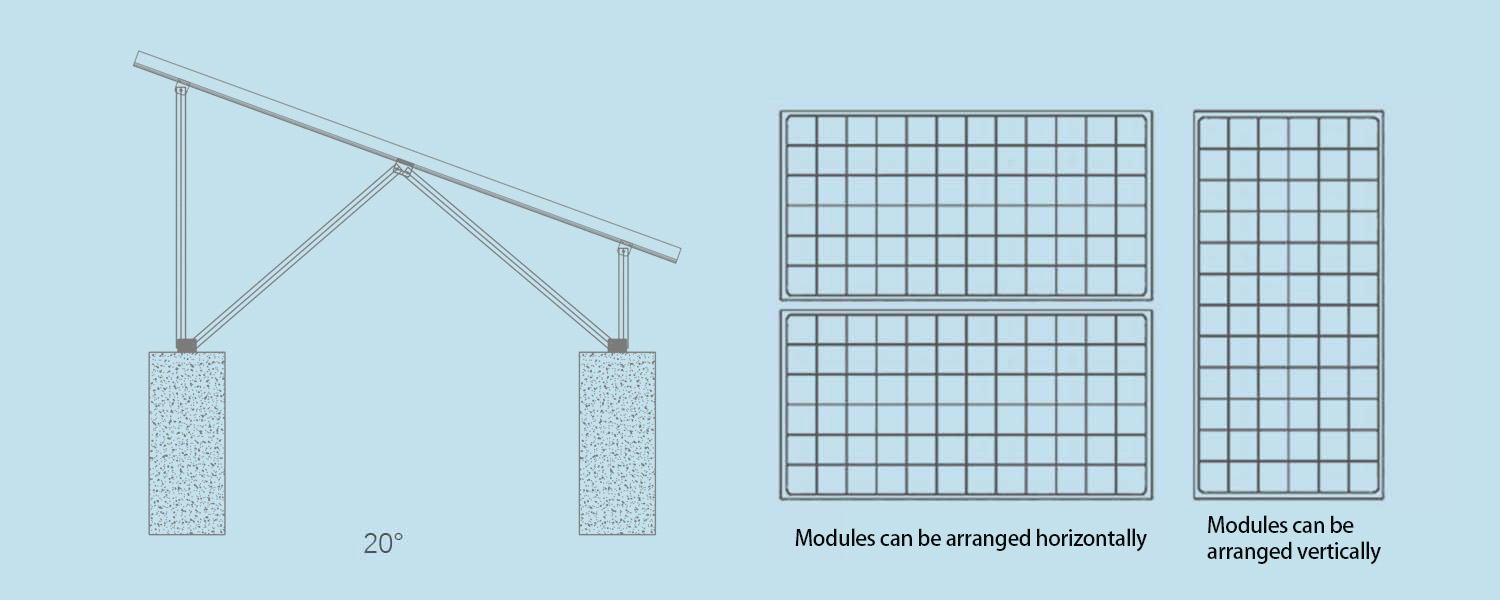

◆Modules & layouts: framed or frameless; portrait or landscape; adaptable to common inverter and combiner strategies.

◆Tilt: configured per project to meet energy yield and clearance requirements.

地面碳钢 水泥基础 双立柱双斜撑 竖放 2X10

Service & Support

◆One-to-one engineering (layout, footing plan, bill of materials, and install guide)

◆Remote crew onboarding and fast technical responses during construction.

◆15-year product warranty plus lifecycle technical support.

f3b2202e59a3c7d2f93c863a08f48b8f

Production to Shipping

◆Release & fabrication: drawings issued; aluminum members fabricated to design.

◆QC & kitting: in-process checks, final inspection, labeled kits packed per section/row.

◆Logistics: export-ready packing and arranged delivery per contract; documents include packing list, installation guide, warranty.

网站2

Proven Capacity & Assurance

   With in-house manufacturing and stable production lines, every ground mounting set is traceable from machining to shipment. Real project photos demonstrate long-term reliability across diverse terrains and climates. Third-party certifications and test reports provide verifiable assurance for materials and structural design.
Choose our aluminum dual-pile driven foundation for repeatable build speed, predictable delivery quality, and dependable after-sales support.
Need a sample, layout, or structural check? Contact us—engineering files and quotes are typically returned the same day.
