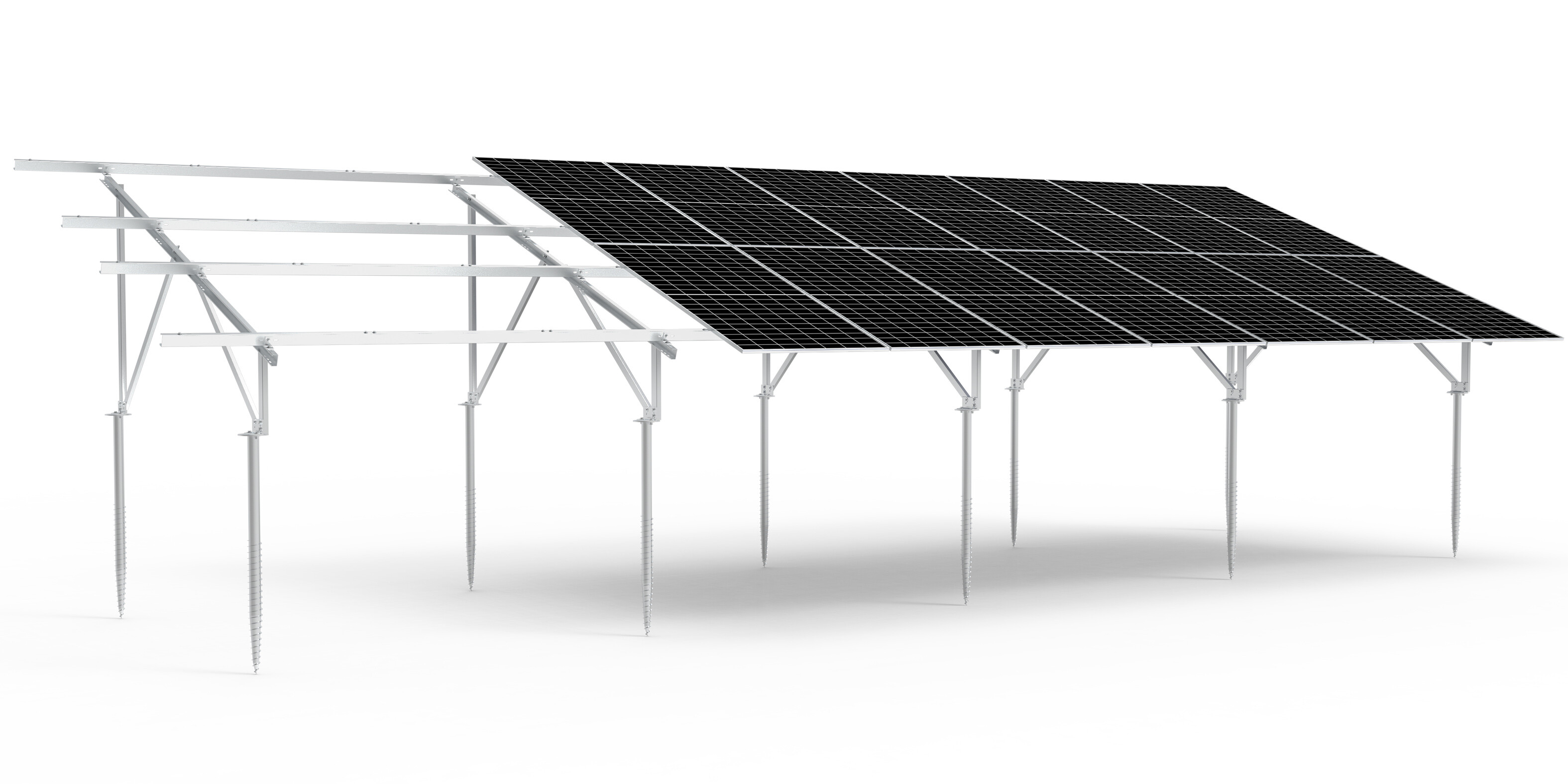

TonKor Ground Mount Carbon Steel Dual Pile Ground Screw Foundation
Hot-dip galvanized steel frame on dual posts with ground-screw foundations. Fast civil works, steady rows, and a clean, repeatable build for open-field PV.
Inquiry Now
Send Email

Product Introduction

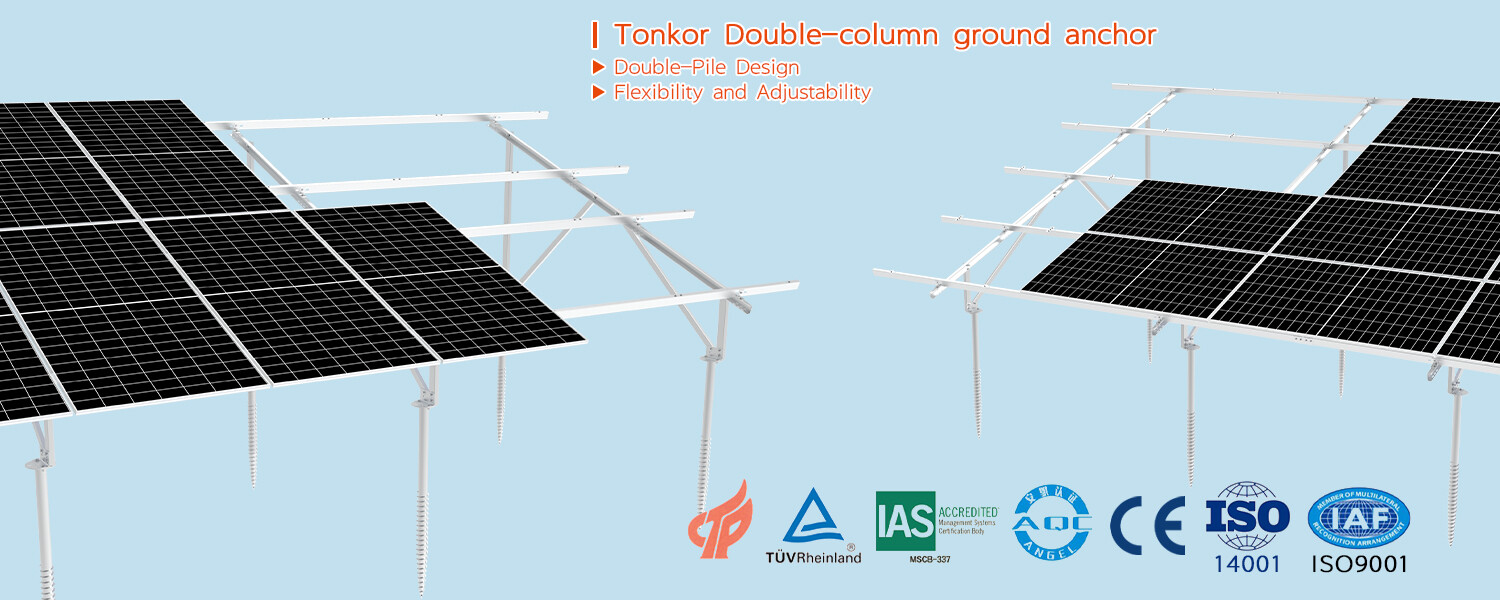

地面碳钢螺旋地桩双立柱竖排2×10光伏支架 - 副本 (2)

Product Introduction

      This dual-pile ground-screw design pairs a hot-dip galvanized steel superstructure with screw foundations to simplify site work and keep schedules predictable. Crews mark row centers, install screw anchors, set paired posts, place beams and rails, then close with modules in a short, repeatable sequence. The wider bearing stance steadies the rail line over varied soils, while portrait or landscape planning keeps the finished field neat and consistent.

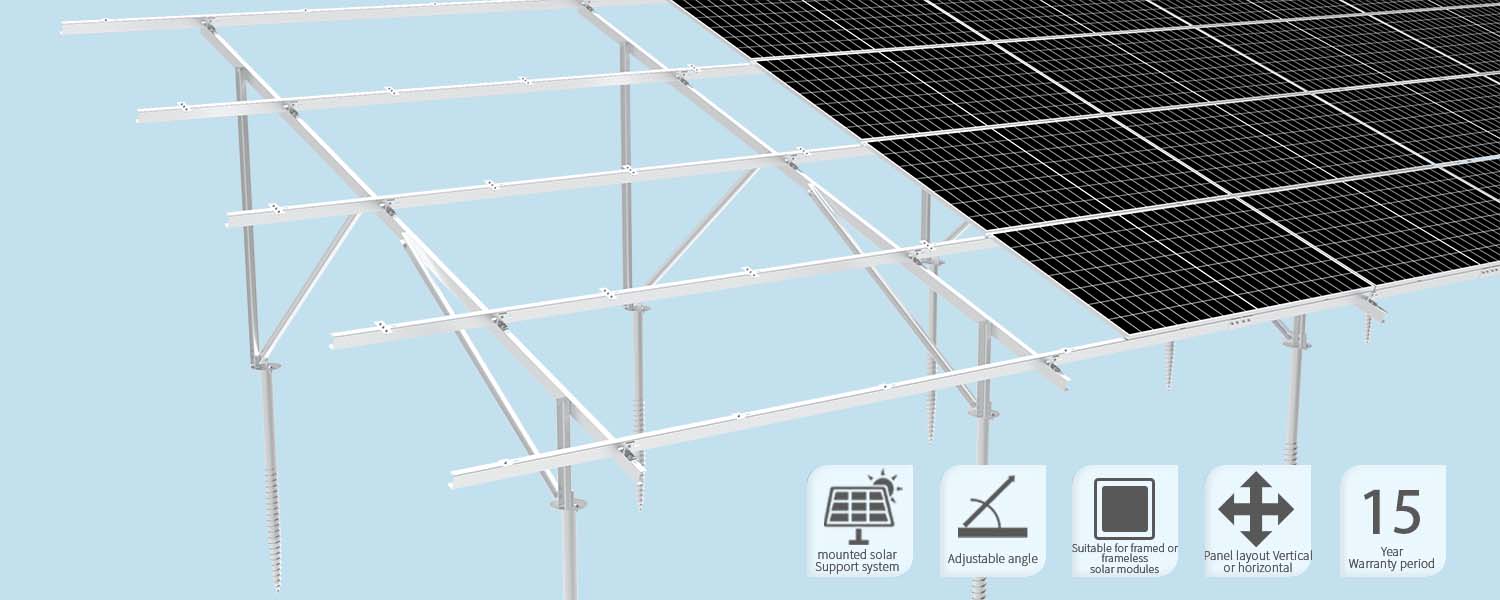

2×10 地面碳钢光伏支架地螺栓

Product Advantages

◆Quick foundations, minimal disruption
    Ground screws reduce concrete work and curing delays, so rows begin building sooner with less site disturbance.

◆Dual-pile stability
    Paired posts provide a broad, calm bearing line that helps long strings read straight across changing terrain.

◆Galvanized steel durability
    Hot-dip galvanized members support long-term outdoor performance and a tidy, low-maintenance finish.

◆Field-friendly adjustability
    Slotted connections allow fine tuning in line and grade to hold alignment despite normal installation tolerances.

◆Scales efficiently
    Standardized bays repeat row by row, simplifying kitting, staging, and crew hand-offs on large sites.

q4

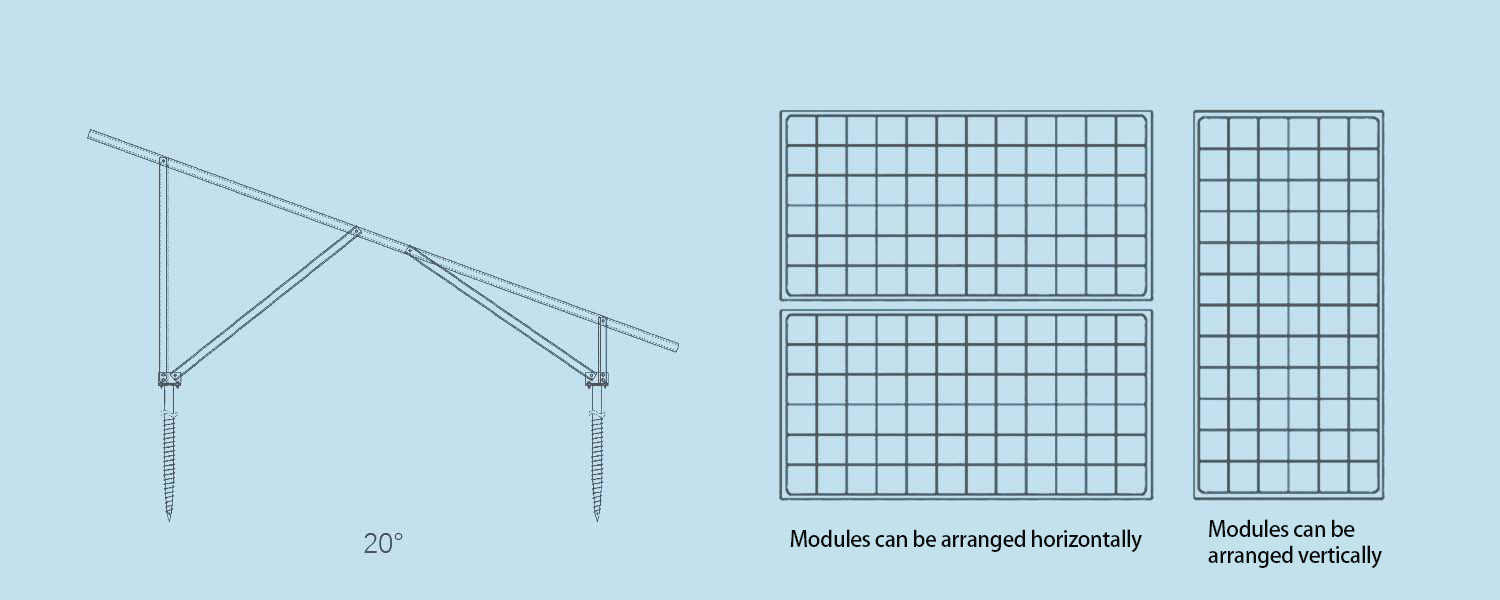

Tilt and Layout

◆Tilt: fixed per project design; confirm exact angle with engineering.

◆Module type: framed as standard; frameless by project confirmation.

◆Layout: portrait or landscape per array plan.

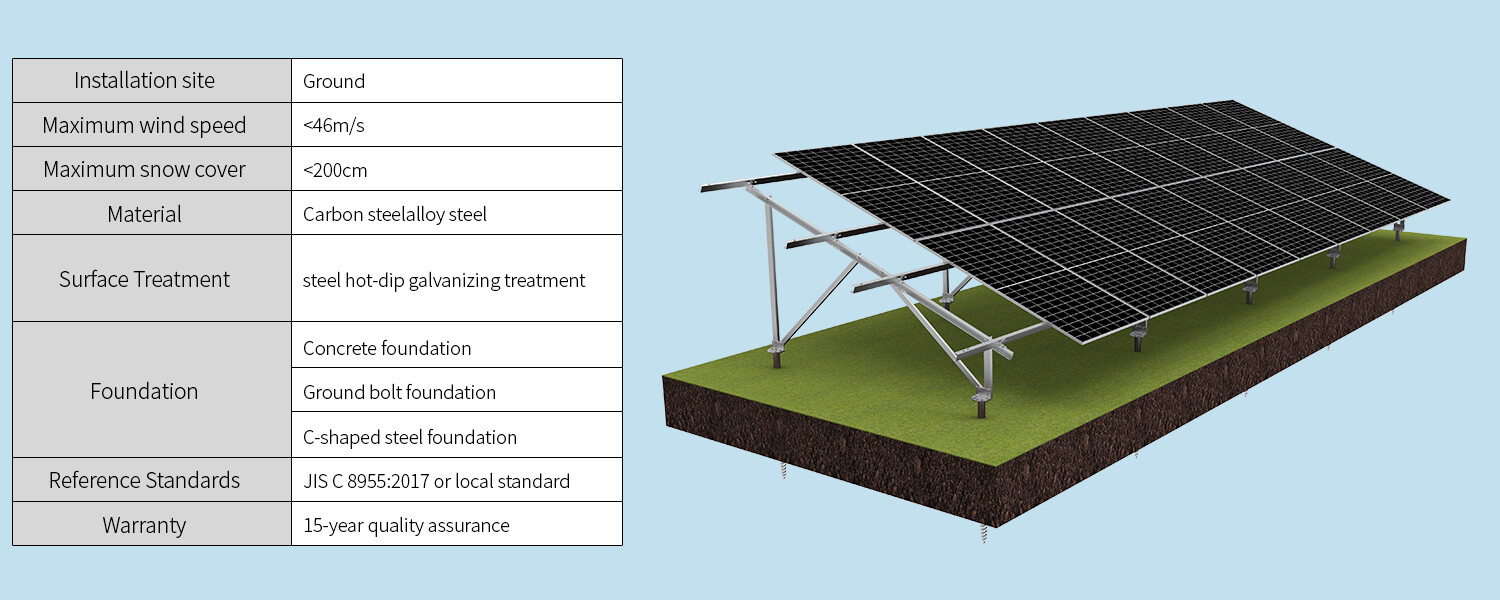

地面碳钢 地螺栓基础 双立柱双斜撑 竖放 2X102

Service and Support

◆Professional product briefings and quick-start training.

◆Engineering review against your BOM and site drawings for a case-by-case ground solution.

◆Installation guide and online assistance during preparation and execution.

◆15-year structural warranty with ongoing technical support.

f3b2202e59a3c7d2f93c863a08f48b8f

Production to Shipping

◆Fabrication: steel coil → forming → precision punching → hot-dip galvanizing.

◆QC and kitting: in-process checks, final inspection, labeled kits packed by row or section.

◆Logistics: export-ready packing and delivery per contract; packing list, installation guide, and warranty included.

网站2

Certified Quality. Proven in the Field.

       Built in our own factory and deployed on rooftops and ground sites worldwide, every mounting kit is produced under ISO-certified processes and verified by third-party testing (CE/SGS). From extrusion/galvanizing to final QC and packing, we control the whole chain to ensure consistent quality and short lead times. Kits ship project-labeled with drawings and installation guides, backed by responsive engineering support and a 15-year product warranty.
Share your layout and wind/snow data—we’ll return an optimized design and quotation fast.
