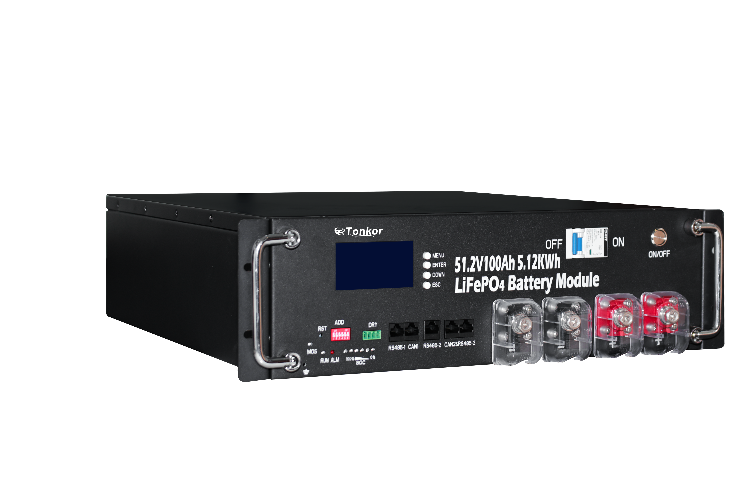

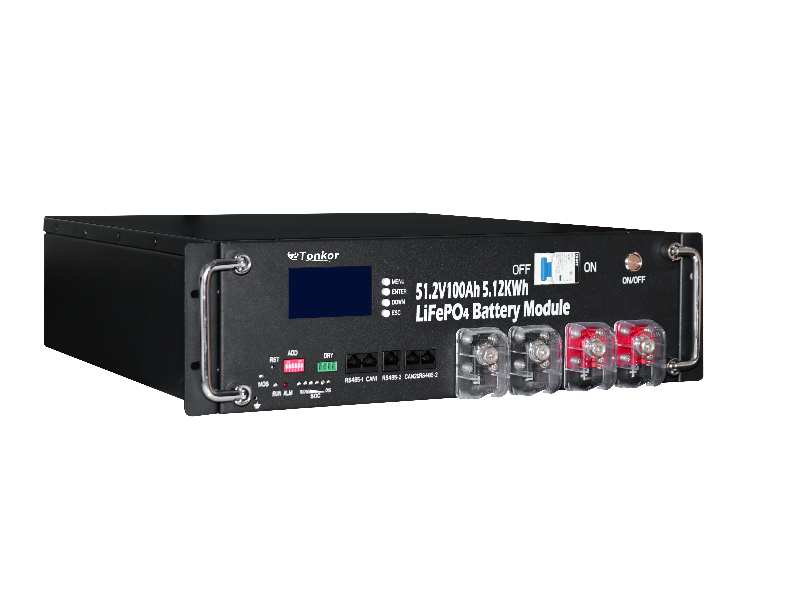

TonKor LR51.2-100 is a high-performance lithium battery module using prismatic LiFePO₄ cells, delivering 5.12kWh of usable energy at 51.2V. It features a smart battery management system (BMS), real-time communication via CAN and RS485, and a front-mounted LCD with LED indicators for easy operation and status monitoring.

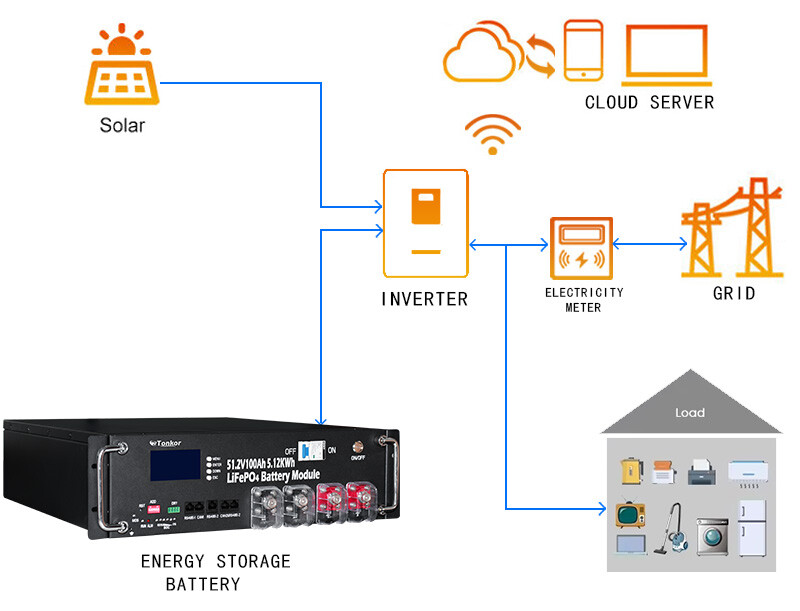

With support for up to 15 units in parallel, the LR51.2-100 is ideal for solar energy systems, off-grid power setups, telecom backup, and small commercial storage. Its compact rack-mountable design and stable discharge characteristics make it a reliable core component for long-term energy independence.

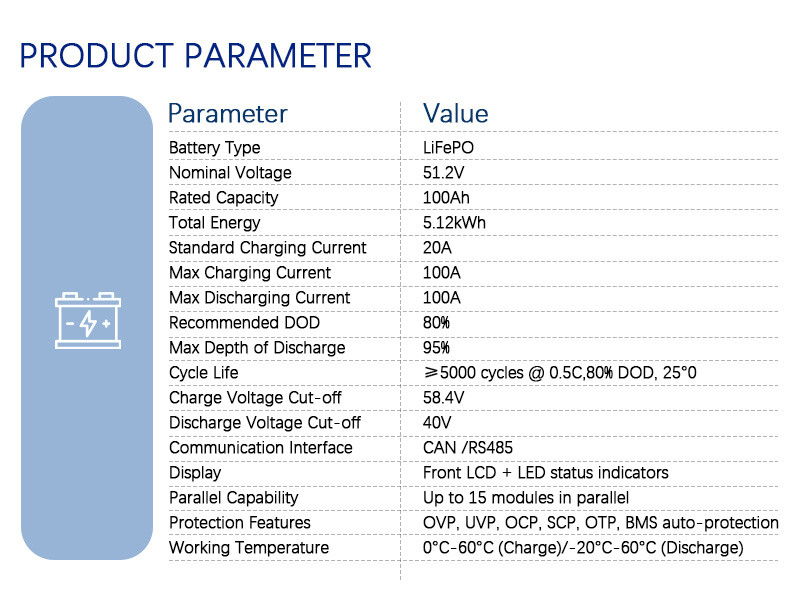

Key Features

 5.12kWh LiFePO₄ energy with 51.2V 100Ah configuration

 Built-in BMS with CAN & RS485 communication for inverter compatibility

 Front LCD and LED indicators for SOC, alarms, and runtime visibility

 Stackable design supporting up to 15 parallel modules

 Multi-layer protection: over-voltage, over-current, short-circuit, over-temp

 Easy to install in racks, cabinets, or wall systems
