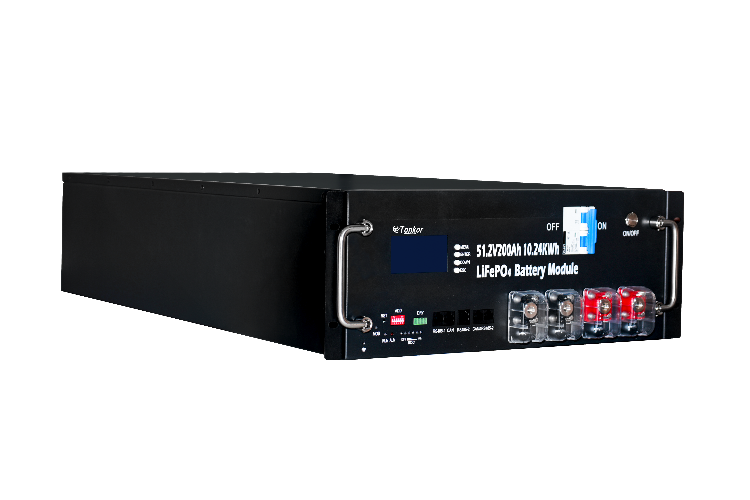

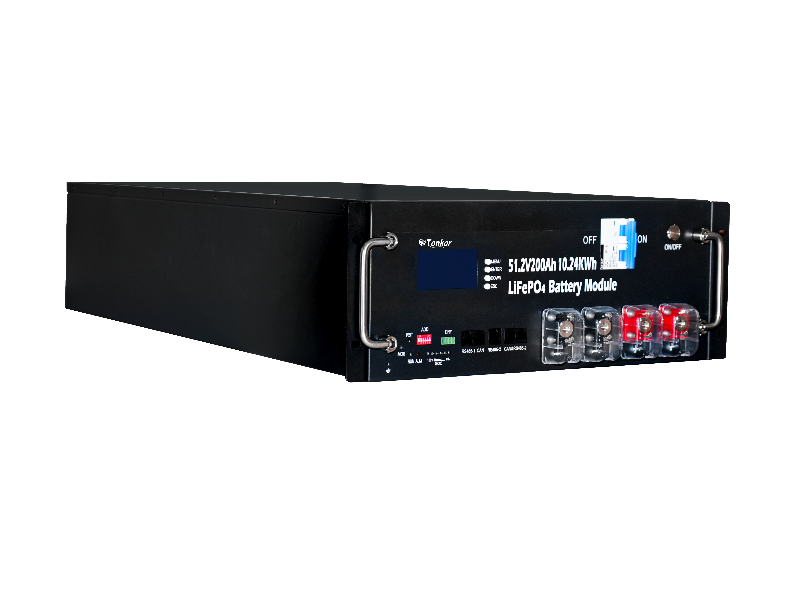

TonKor LR51.2-200 is a heavy-duty LiFePO₄ battery module designed for energy-intensive applications. With 200Ah capacity and 51.2V nominal voltage, it offers 10.24kWh of usable energy in a single compact form. The integrated smart BMS ensures secure operation and seamless communication via CAN and RS485 protocols.

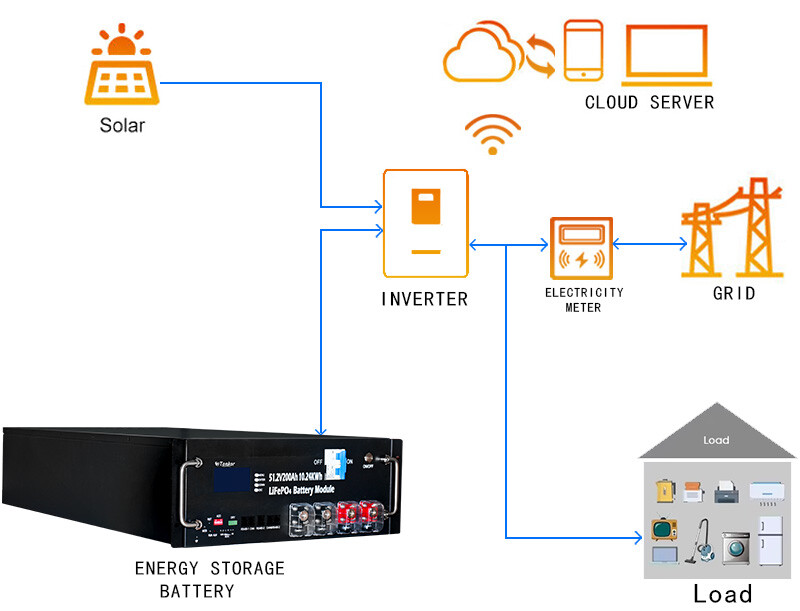

Each unit includes an LCD display and LED indicators for easy status access. The LR51.2-200 supports parallel expansion of up to 15 units, making it a powerful component for scalable solar, off-grid, or telecom energy systems.

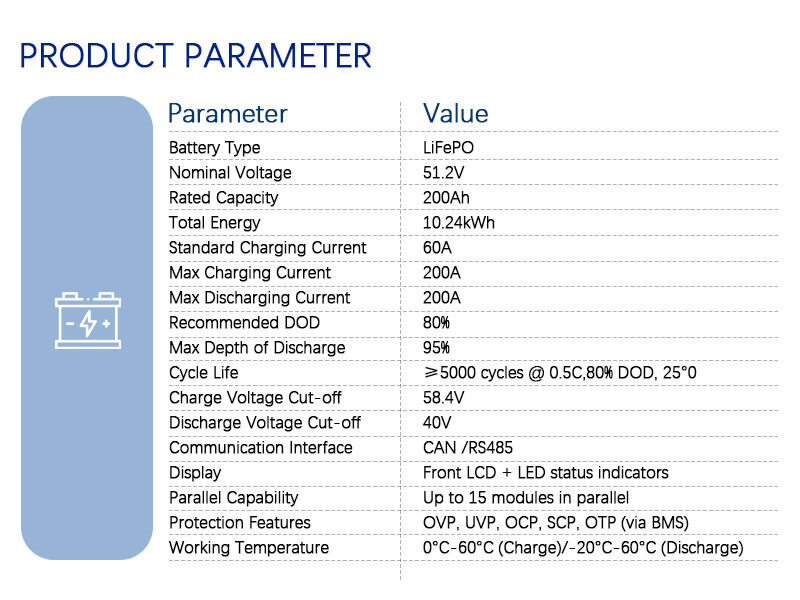

Key Features

10.24kWh usable energy with 51.2V 200Ah configuration

RS485 and CAN communication for smart inverter systems

LCD display and indicator lights for system status at a glance

Supports parallel use of up to 15 modules

Multi-layer protection via smart BMS: over-voltage, over-temp, over-current, short-circuit

Compact cabinet form, suitable for rack or cabinet mounting
