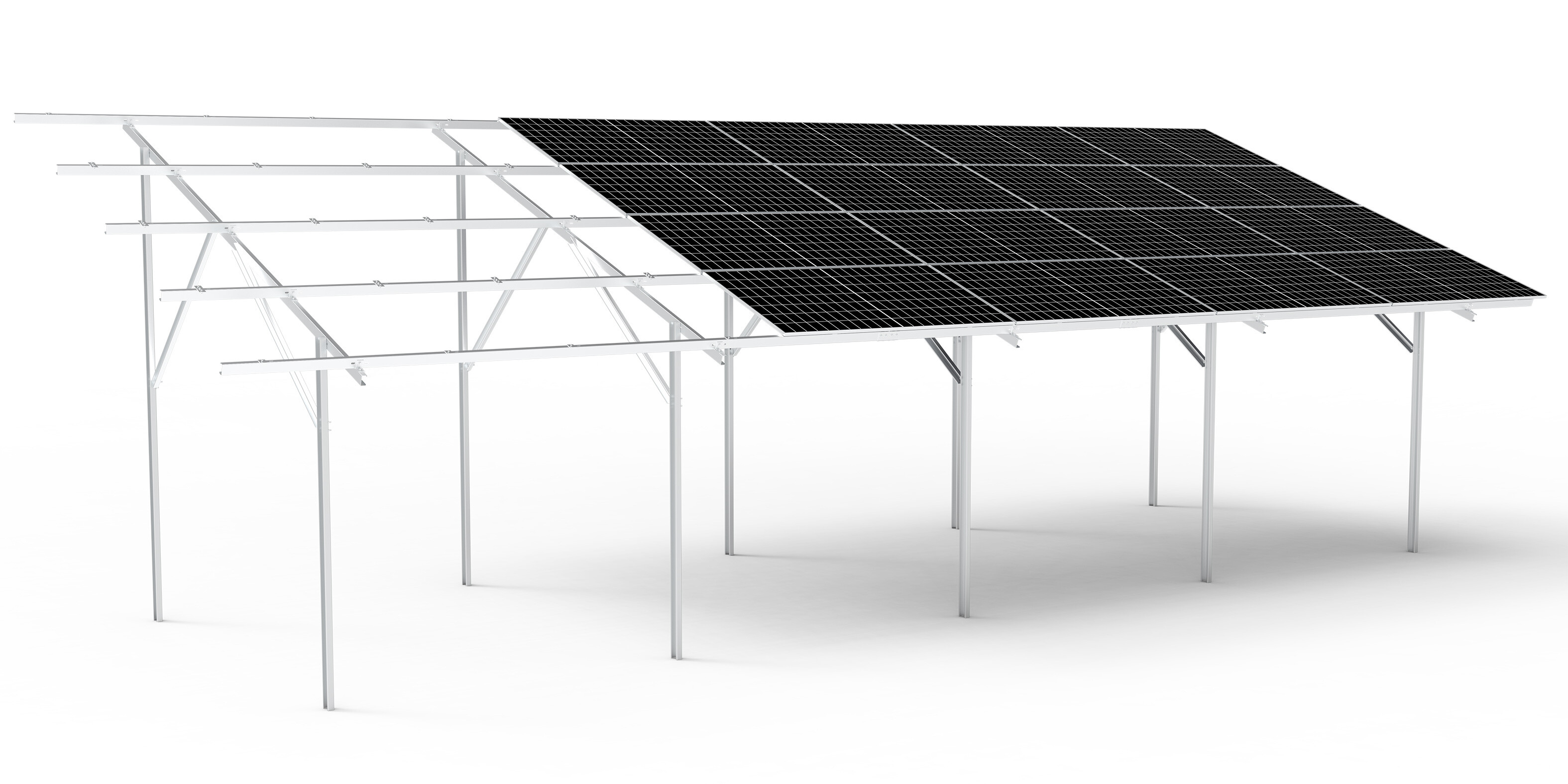

TonKor Steel Dual Post Pile Driven Ground Mount
Hot-dip galvanized steel ground mounting system using dual posts and pile-driven foundations. Engineered for large and utility-scale PV sites, it installs fast, carries high wind/snow loads, and delivers long service life with low total cost.
Inquiry Now
Send Email

Product Introduction

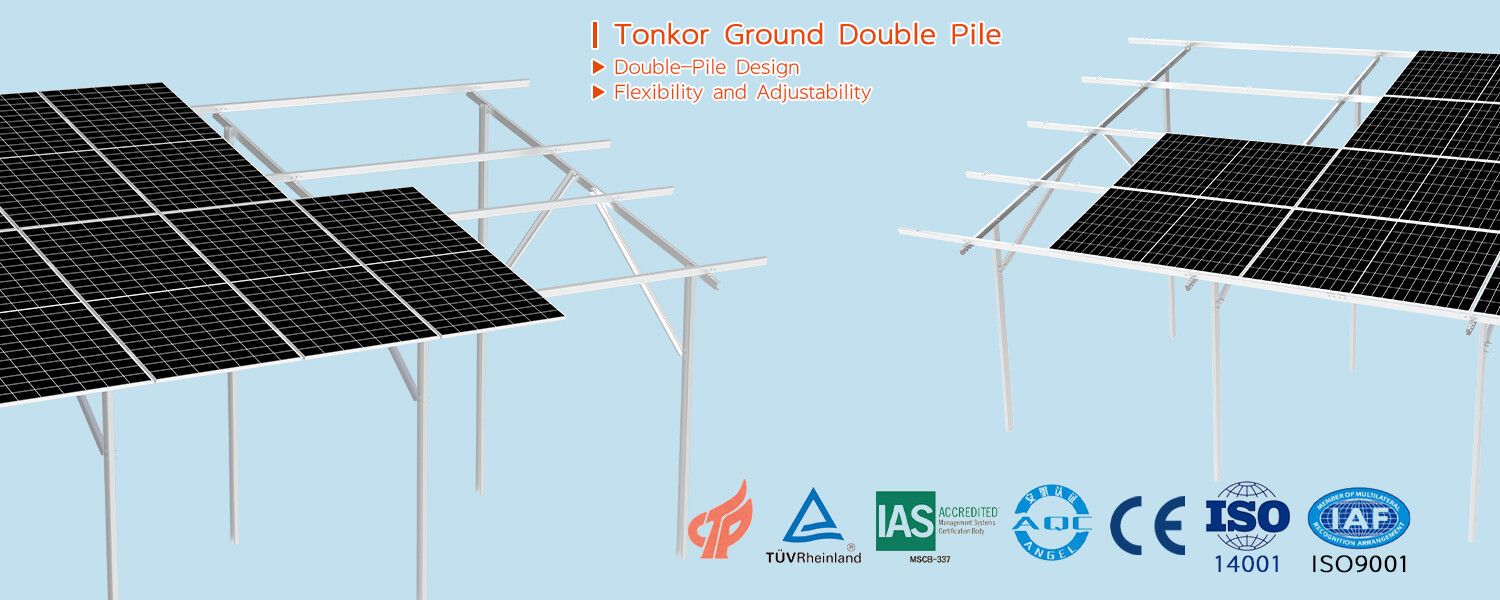

地面碳钢

Product Introduction

      The TonKor Steel Dual Post Pile Driven Ground Mount is a cost-efficient racking solution optimized for medium-to-large solar plants. Main members are manufactured from hot-dip galvanized steel for excellent structural strength and corrosion resistance. A simplified dual-post frame with shared bracing reduces part count and on-site work; components arrive pre-assembled to speed deployment. The system tolerates construction deviations, supports uneven terrain, and accepts framed or frameless modules in portrait or landscape layouts. Designed around pile-driven foundations, it shortens civil work and accelerates project schedules while maintaining long-term stability.

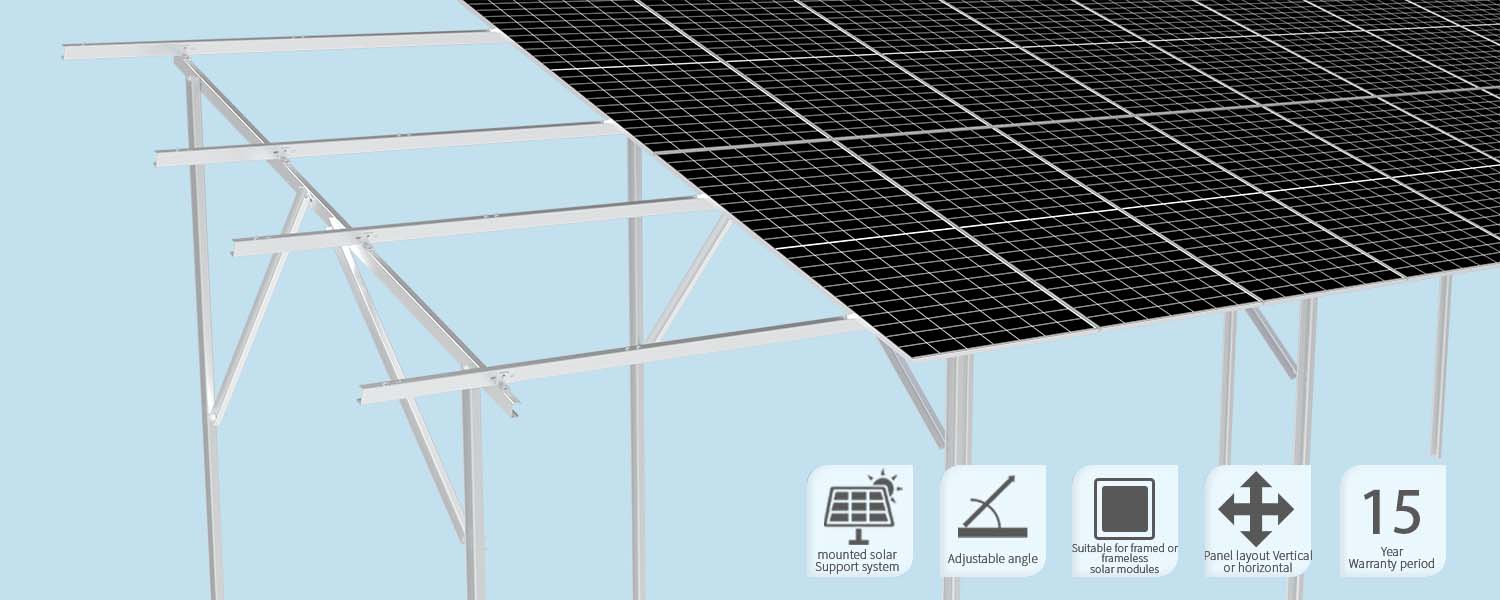

2×10 地面碳钢光伏支架

Key Advantages

◆Factory pre-assembly, no cutting or drilling
    Kit arrives with major sub-assemblies pre-built; field work is tool-light and repeatable, cutting installation time and labor cost.

◆Optimized dual-post structure
   Reinforced beams and diagonal bracing deliver high load capacity with lean material usage, improving strength-to-cost.

◆Wide site adaptability
    Adjustable rails and slots allow east-west and north-south tolerance, accommodating pile variance, mild undulation, and string layout changes.

◆Fast pile construction
   Pile-driven foundations minimize concrete work, reduce machinery time, and keep schedules predictable on large sites.

◆Long-term durability
   Hot-dip galvanized steel (inside and out) ensures strong corrosion resistance for a stable, low-maintenance lifecycle.

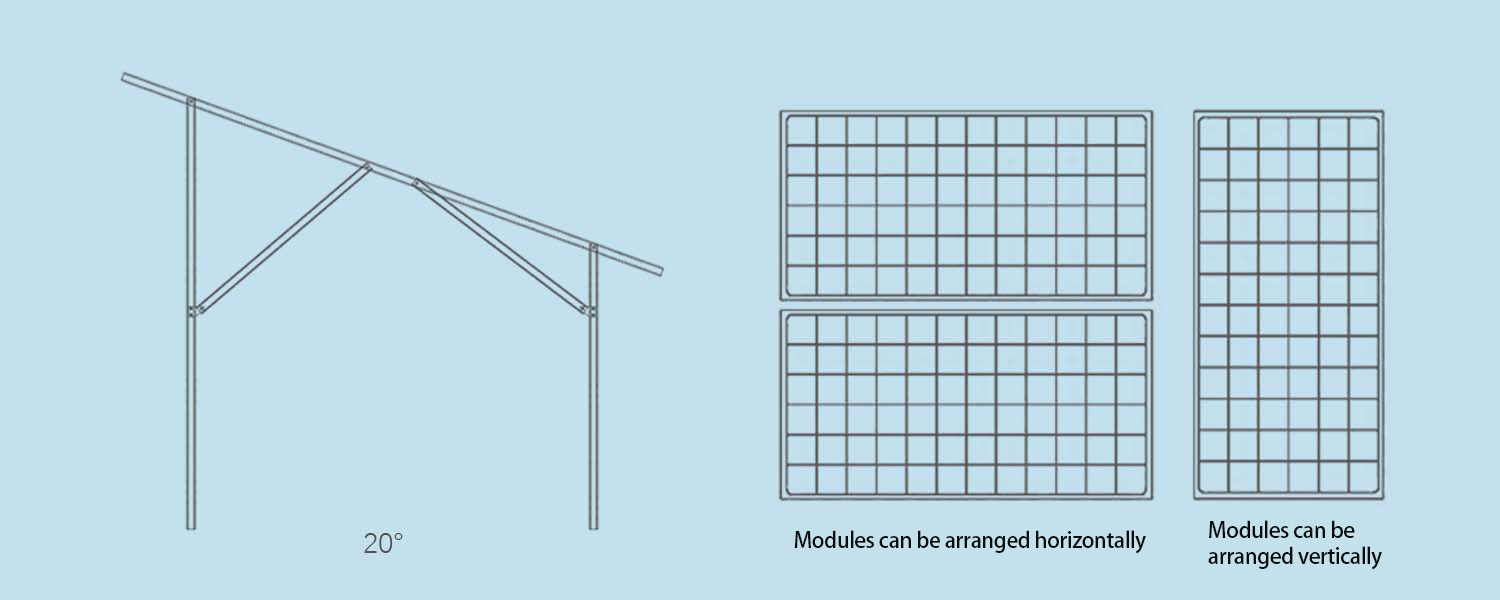

q1

Application & Configuration

◆Tilt Angle: 0°–60° (project-specific)

◆Module Type: Framed or frameless

◆Module Orientation: Portrait or landscape

◆Typical Use: Large commercial and utility-scale ground plants, flat or gently sloped terrain

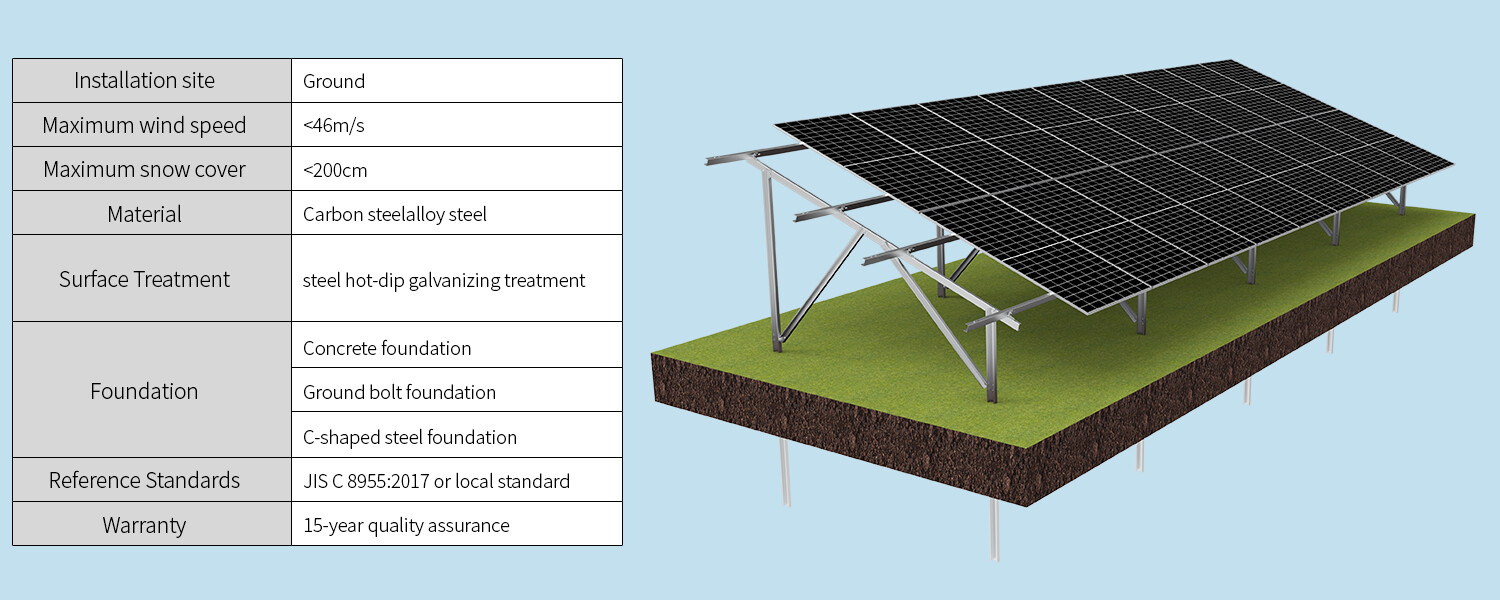

2×10地面碳钢光伏支架 双桩竖排2

Service & Support

◆Professional product briefings and quick-start training
◆Project-specific ground-mount solution with engineering support (layout and loads)
◆Installation guide plus online assistance during preparation and commissioning
◆15-year structural warranty and ongoing technical support

f3b2202e59a3c7d2f93c863a08f48b8f

From Factory to Site — Fast, Traceable, Ready to Install

◆Steel parts: Coil → forming/welding → precision punching →hot-dip galvanizing → QC → kit packing → shipment.

◆Aluminum parts: Ingots → billets/extrusion → anodizing & finishing → QC → kit packing → shipment.

◆Assurance: Dimensional checks, coating thickness, weld tests.

◆Efficiency: Project-labeled kits cut on-site sorting and speed installation.

◆Result: Clean, corrosion-resistant components that fit first time.

网站2

Certified Reliability

       Built in our own factory and deployed on rooftops and ground sites worldwide, every mounting kit is produced under ISO-certified processes and verified by third-party testing (CE/SGS). From extrusion/galvanizing to final QC and packing, we control the whole chain to ensure consistent quality and short lead times. Kits ship project-labeled with drawings and installation guides, backed by responsive engineering support and a 15-year product warranty.
Share your layout and wind/snow data—we’ll return an optimized design and quotation fast.
